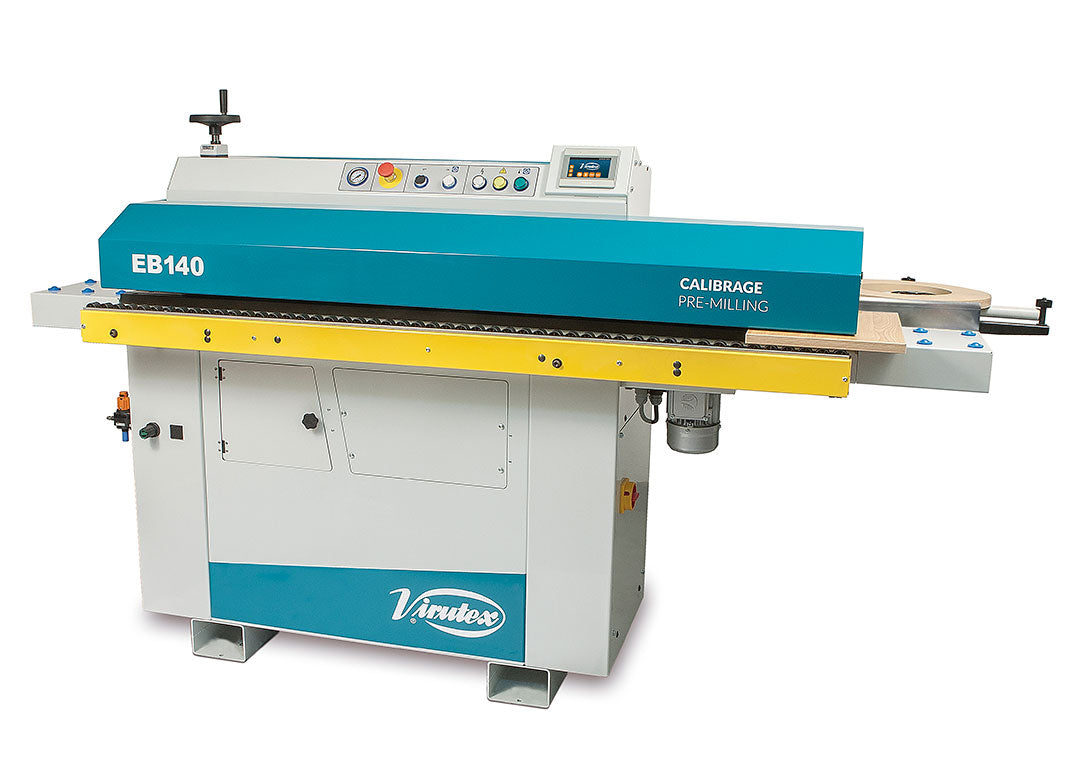

Virutex EB140 Automatic Pre-Milling Edge Bander Machine with Glue Pot
Virutex EB140 Automatic Pre-Milling Edge Bander Machine with Glue Pot
Regular price
€14.000,00 EUR
Regular price
Sale price
€14.000,00 EUR
Unit price
/
per
Taxes included.
Couldn't load pickup availability

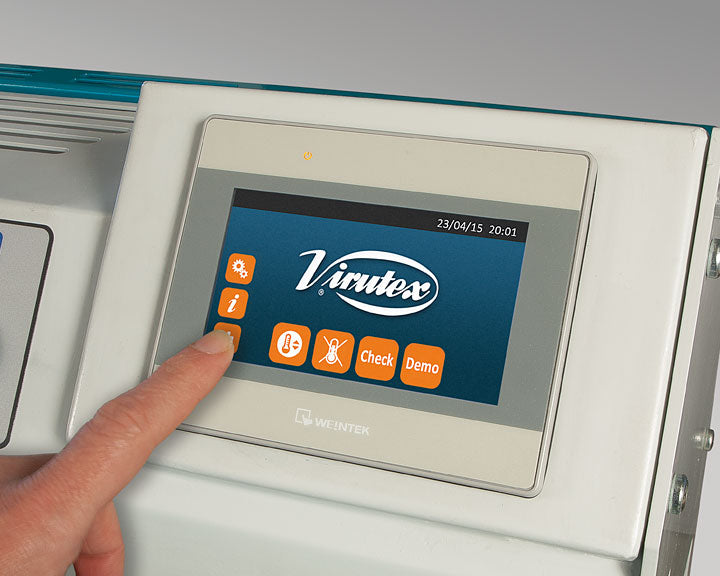

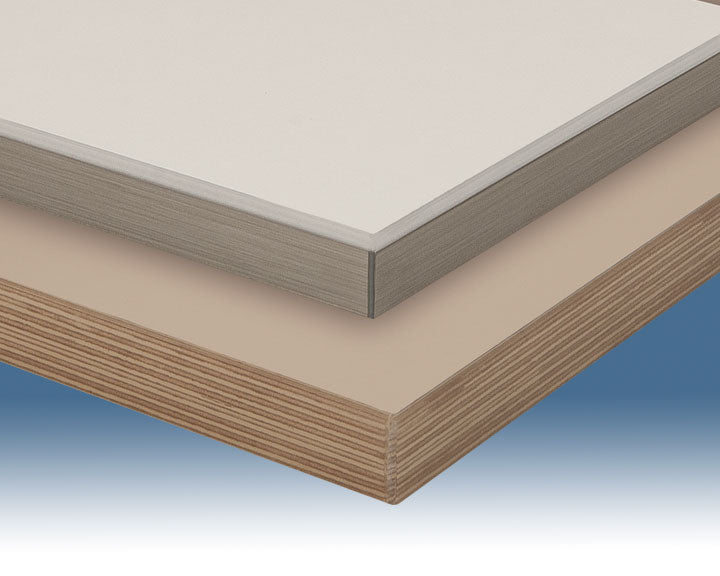

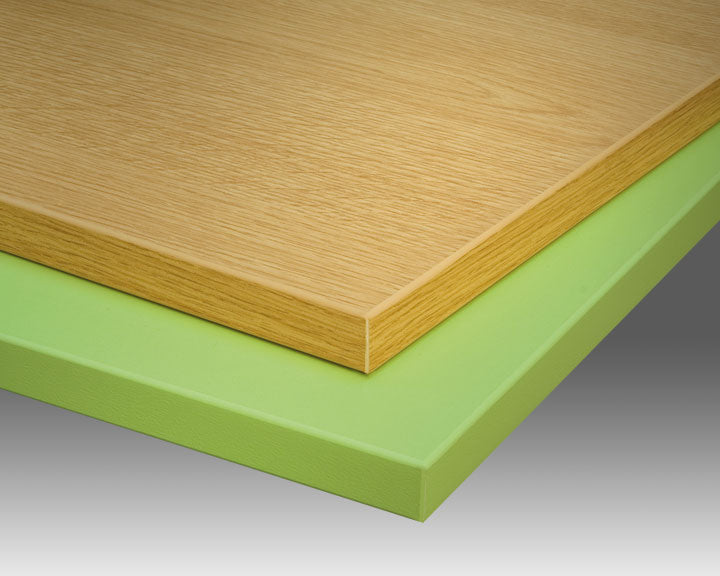

Unleash your inner craftsman with the Virutex EB140 Automatic Pre-Milling Edge Bander, your new best friend for flawless finishes. This powerhouse machine boasts a PLC digital processor and a pre-milling unit, ensuring perfectly rectified panel edges every time. Experience rapid glue heating and effortless adjustments via its intuitive touchscreen, making edge banding a joyous breeze. Plus, with its patented motorized glue roller, you'll enjoy significant glue savings while achieving stunning PVC, wood, ABS 3D, and even glass edge applications.
| Usable Edge Thickness | 0.5 - 2 mm |
| Usable Edge Height (0.5 to 1mm) | 45 mm |
| Usable Edge Height (0.5 to 2mm) | 30 mm |
| Panel Thickness (Min/Max) | 13 / 45 mm |
| Minimum Panel Length (Edged Face) | 140 mm |
| Minimum Banding Width | 65 mm |
| Feeder Speed | 5 m/min |
| Profiler Speed | 10000 rpm |
| Profiler Cutter Diameter | 60 mm (4Z R2 + 10°) |
| Roll Holder Capacity | 590 mm |
| Glue Pot Capacity | 1 kg |
| Working Temperature Range | 120° - 220°C |
| Feeder Motor Power | 0.37 kW |
| Profiler Motor Power | 0.37 kW |
| Gluing Unit Motor Power | 0.09 kW |
| Milling Depth | 0.5 - 2 mm |
| Milling Height | 48 mm (Optional 35 mm) |
| Milling Unit Motor Power | 0.37 kW |
| Approximate Weight | 280 kg |
| Control System | Digital Processor (PLC) |
| Glue Roller | Motorized with Polymerization Treatment |
| End Trimming | Automatic Pneumatic |
| Temperature Control | Automatic with 110°C Standby |
| Glue Pot Feature | Non-stick coating with adjustable quantity |
| Edge Feeder | Automatic roll with pneumatic cutter |
| Table Material | Anti-friction |
| Feeder Type | Powerful Combined Traction |
| Panel Thickness Adjustment | Digital Counter |
| Front Support | Telescopic with Roller Path |
