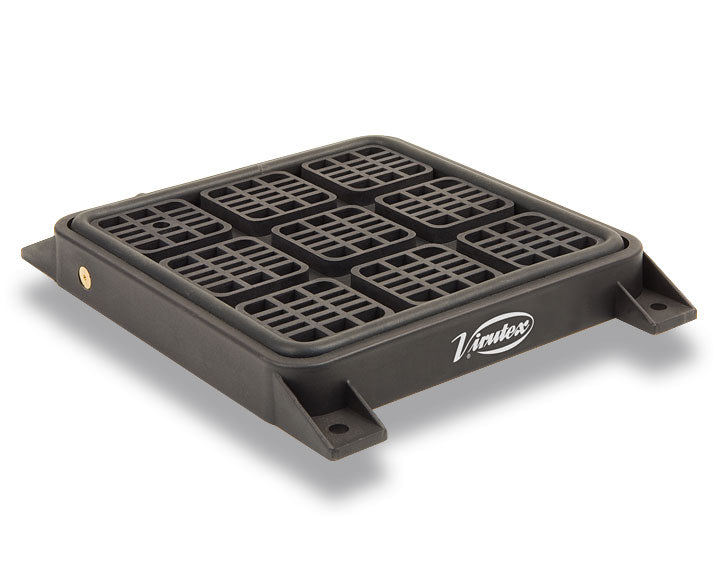

Virutex Clamp SVN250 System

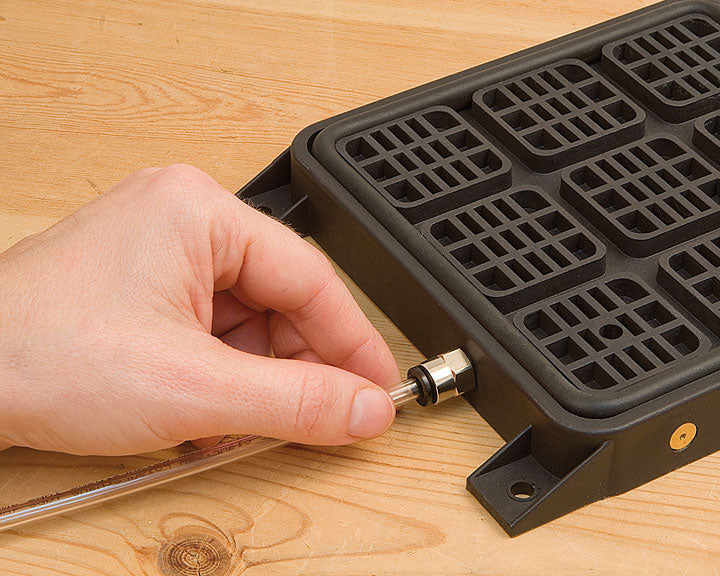

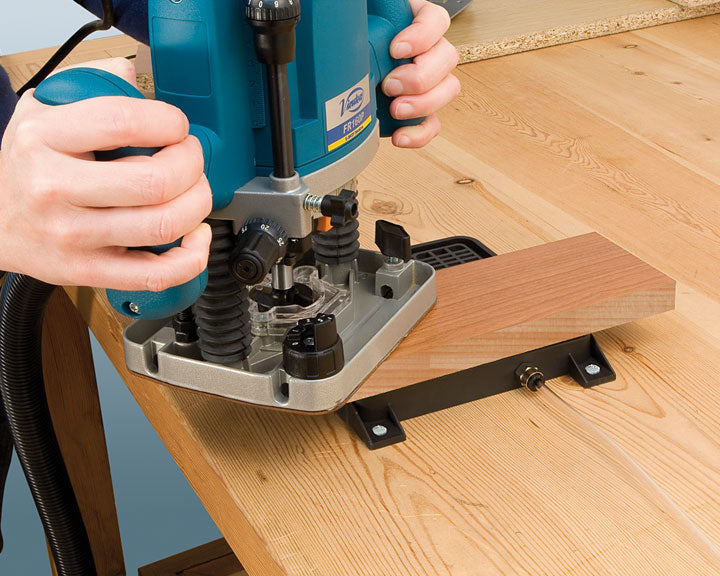

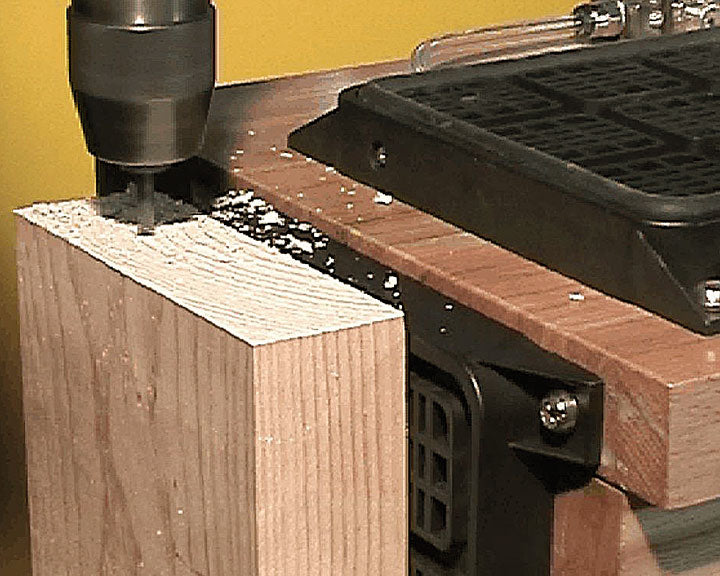

The Virutex Clamp SVN250 System provides a firm hold on smooth, non-porous surfaces using a pneumatic vacuum clamping system. It allows for instant clamping without leaving any marks on the surface of the pieces, making it possible to clamp large or small pieces in various positions. The system's compact size makes it extremely versatile and practical for both in-shop and on-site work.

Clamping Force	800 gr/cm2 at 6 bar
Working Pressure	5.5 - 7 bar
Air Consumption at 5.5 bar	28 l/min
Suction Plate Dimensions	150 x 150 mm
Unit Measurements	160 x 22 x 200 mm
Weight	325 gr
